4X-100
A Legend of Customized Abutment
For Milling Center
4 Axis
Zirconia
Premill
Custom Abutment
Fast
Wet and Dry
Disc
Reduction in production time can be achieved through up-to 10 simultaneous machining.
In addition, the reverse machining allows for a shorter post-mill processing time and a cost reduction.
10 unit Abutment fixture
15 mins Milling per premill
±5 µm Repeatability value
4 - AXIS Simultaneous milling
10 PRE-MILLED BLANKS SIMULTANEOUS MACHINING
Milling custom abutment
without connector
Minimisation of post-machining time

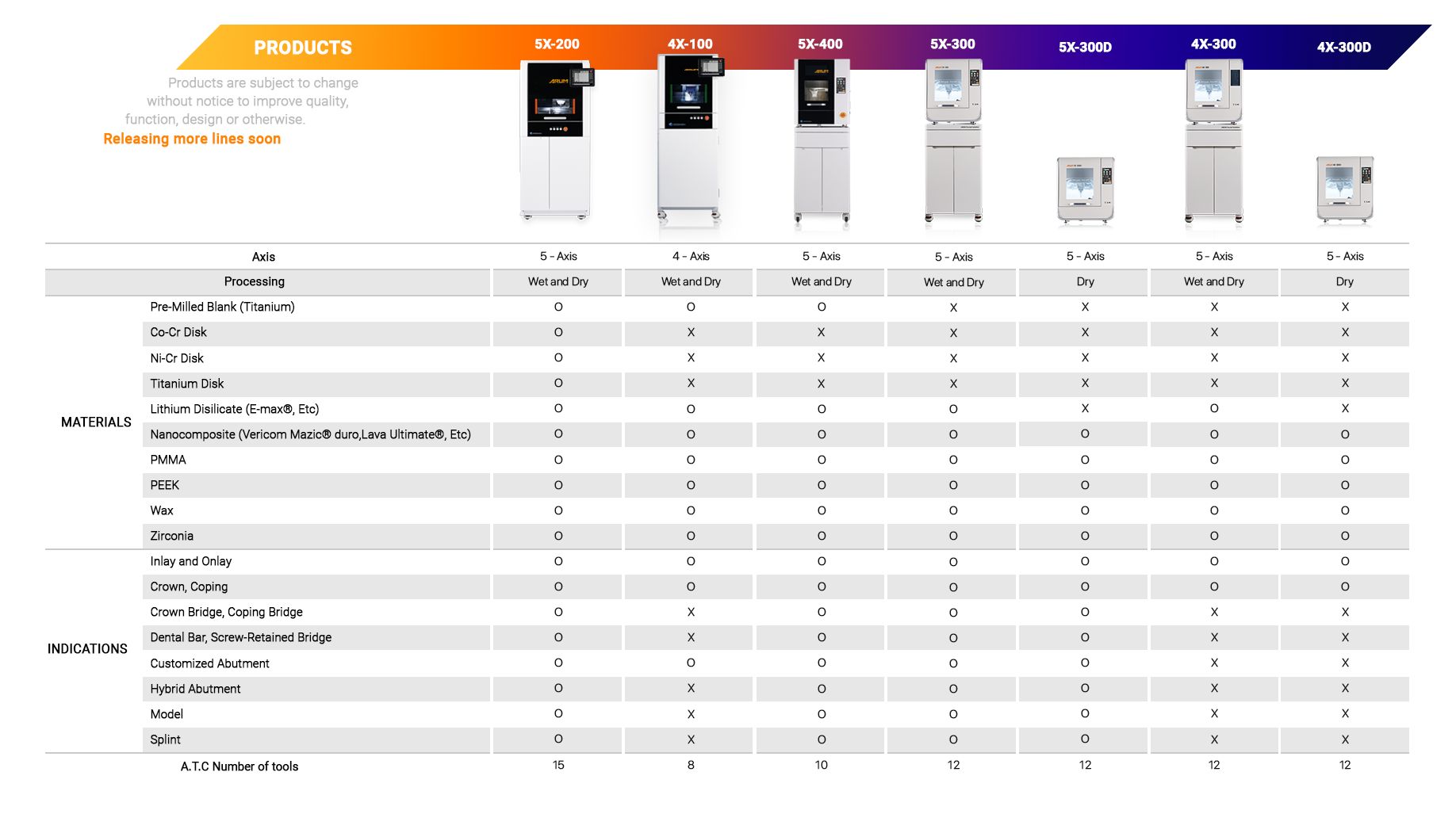

MILLING MATERIALS
Mill from ZIRCONIA to LITHIUM DISCILICATE
Pre-Milled Blank (Titanium), Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, PEEK, Wax, Etc
8 Position Automatic Tool Changer
Various materials can be processed under one setting with the automatic tool changer.
Milling Product
Indications
Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Customized Abutment, Hybrid Abutment, Model, Splint
Heavy-Duty Spindle
- Spindle Speed 5,000 to 50,000 rpm
- Spindle Power 1.8KW at AC
- LED Work Light: White
- X Y Z Axis Travel 10 X 5 X 4 inch
- B Axis Travel 360°
Dimension
- Machine Size (L X D X H) inch: 24 X 30 X 68
- Weight: 661Lb (300Kg)
